Electric Brushless DC Motor Complete Kit, 48V 1800W Motor Kit, 4500RPM with 3 Speed Controller, Battery Display Throttle, Electric Scooter Bicycle E Bike Motorcycle Mid Drive Motor, DIY Part

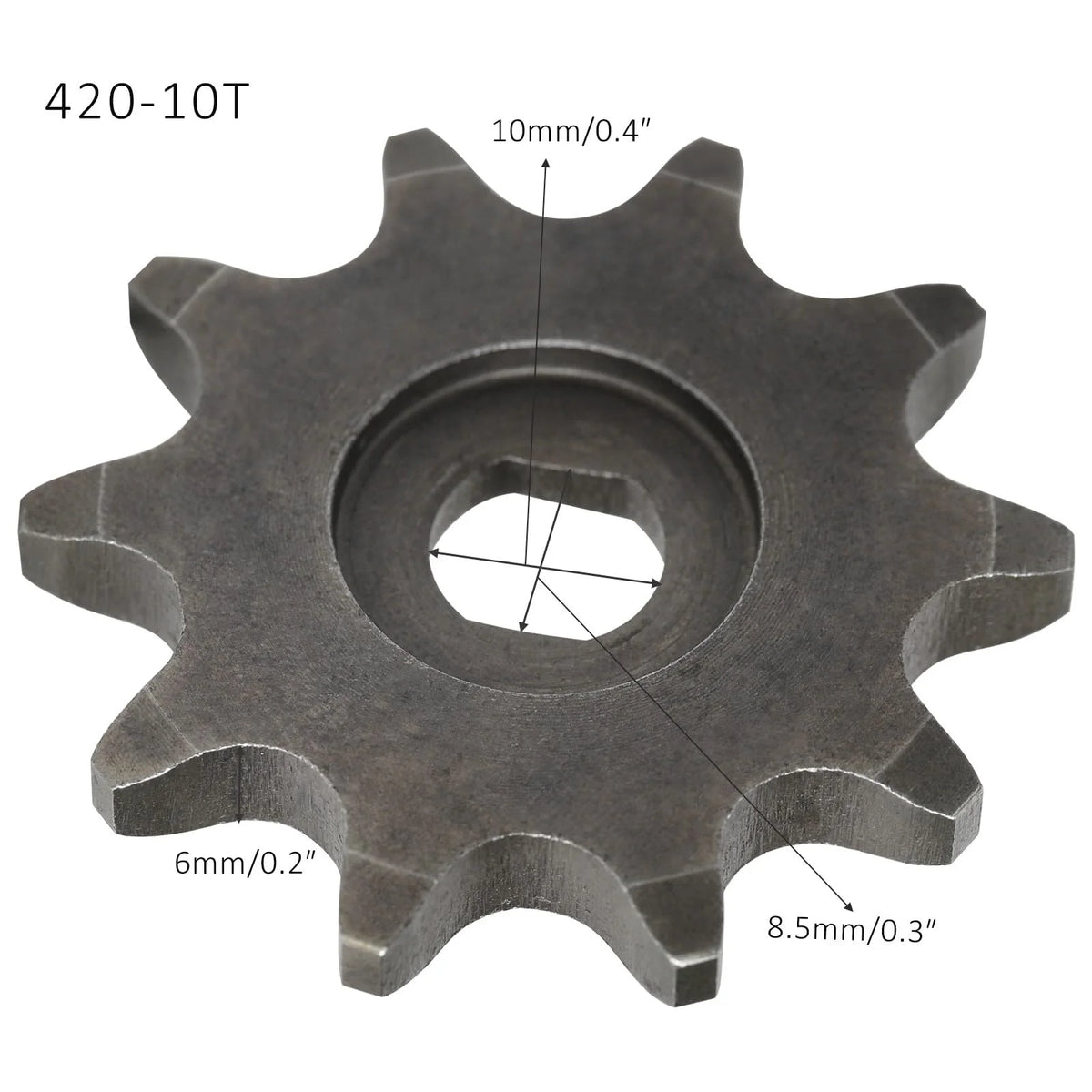

Product Description Motor Specification: Style: striae & Round Operating voltage: 5V Adjustment range: Minimum ?1.0V; highest ?4.0V Function: high, medium and low grades governor Electric brushless Motor: Type : Brushless DC Motor Output Power: 1800W Voltage : 48V Max Speed: 4500rpm The Sproket installed on the motor : T8F 9T 420 Rear chain Sprocket For Pit Dirt Bike ATV Quad Buggy Go Kart Mini Bike 420-48T-51mm: Central hole diameter: 51mm 420 10T Motor Sprocket: Inner hole Size: Approx. 10x8.5mm 420 100 Links Chain Package includes: 1x Motor, 1x 420 10T motor sprocket, 1x 420 48T rear chain sprocket, 1x 420 100 links chain, 1x speed controller, 1x key switch, 1x charging port, 1x power indicator, 1x wiring harness, 1x terminal block, 1x foot pedal, 1x throttle grips, 1x forward reverse switch, 1x circuit breaker 1x 3 speed toggle switch

• • Brushless Motor Features: Electric Brushless DC Motor, Aluminum Body, Full Copper Coil, Heat Resistant, Naturally Air Cooled, Low Noise High Quality More Long Life.
  •

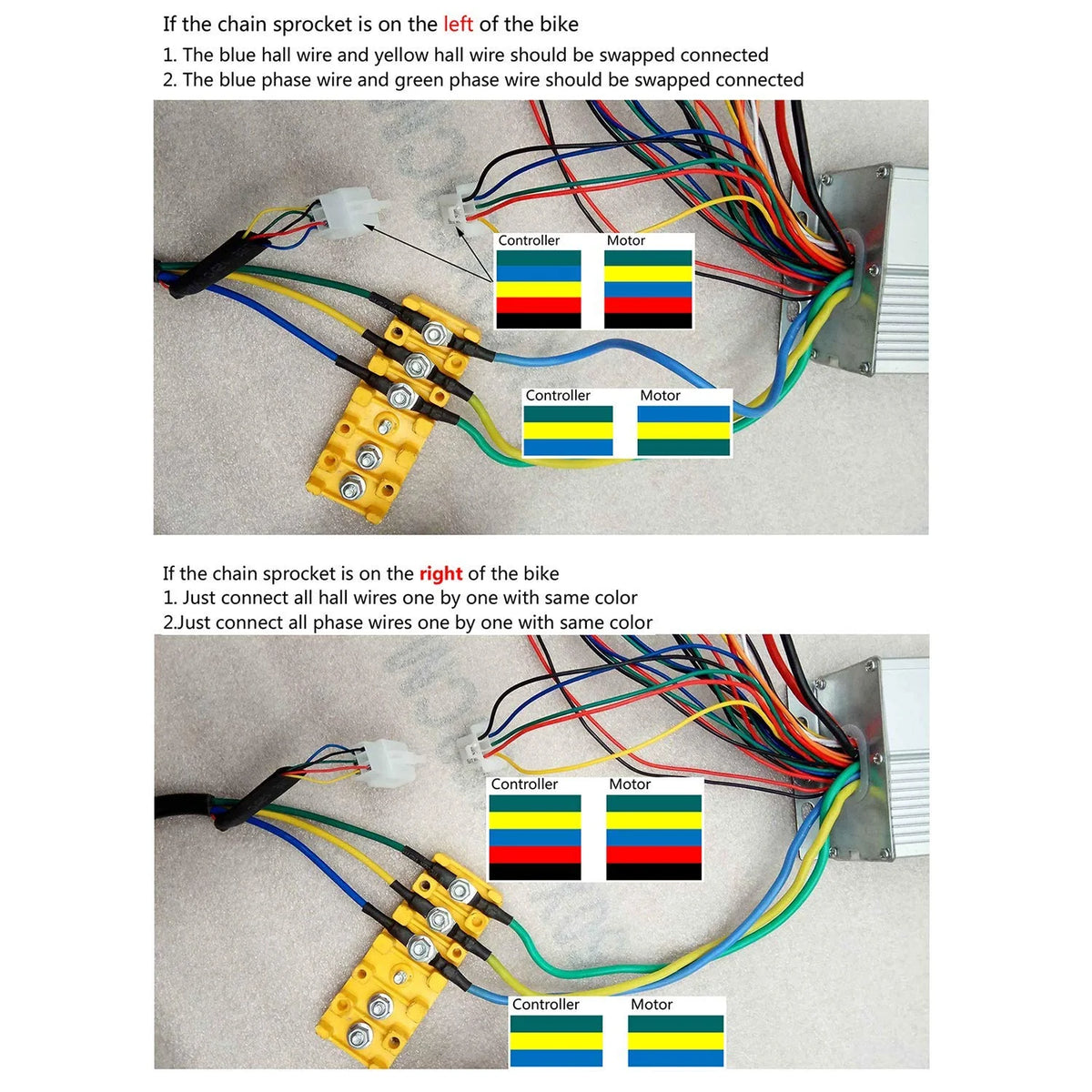

• • The running direction of the motor can be changed by changing the wiring between the motor and the controller (reverse-counterclockwise) : Step 1: 3 thick yellow, green and blue wires (phase wires) : Controller to the motor - yellow to yellow, blue to green, green to blue; Step 2: 6 Hall Wires: Controller to the motor - blue to yellow, other unchanged.

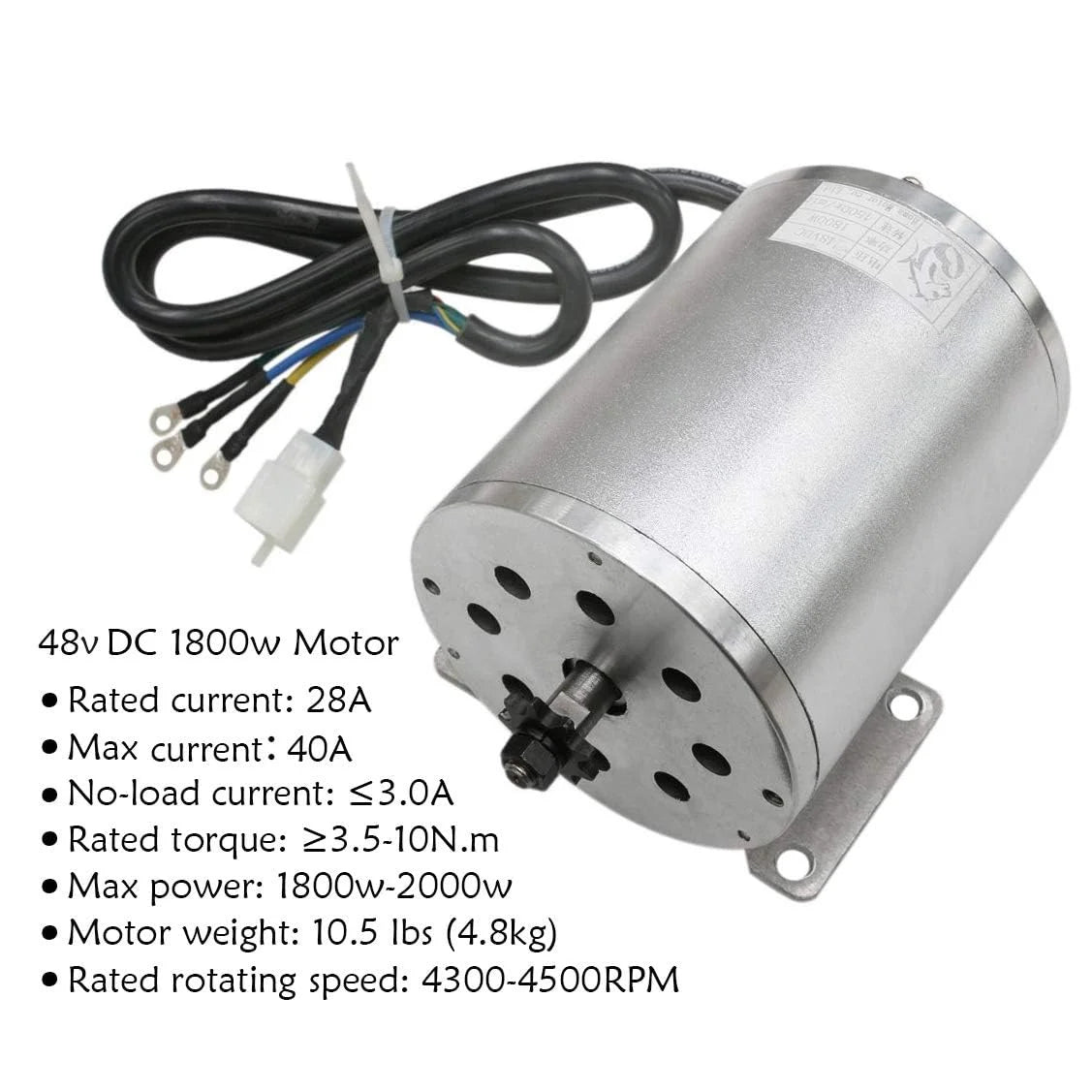

• • Input Voltage: 48V DC, Output Power: 1800W, Rated Current: 33A, Rated Speed: 4500 RPM, Maximum Speed: 5200 RPM, Sprocket: T8F-9T, Maximum Current: 37.5A.
  •


• • It is suitable for go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, pocket bikes,E Tricycle, 4 wheeler, Quad, Buggy, Drift Trike
• Multiple Application: Brushless motor is much better than the brushed motor due to its high efficiency, power frugal, low noise, long lifespan, stable operation. It is suitable for go karts, scooters, e-bike, ATV, motorized bicycle, moped, mini bikes, pocket bikes, golf cart etc.
•

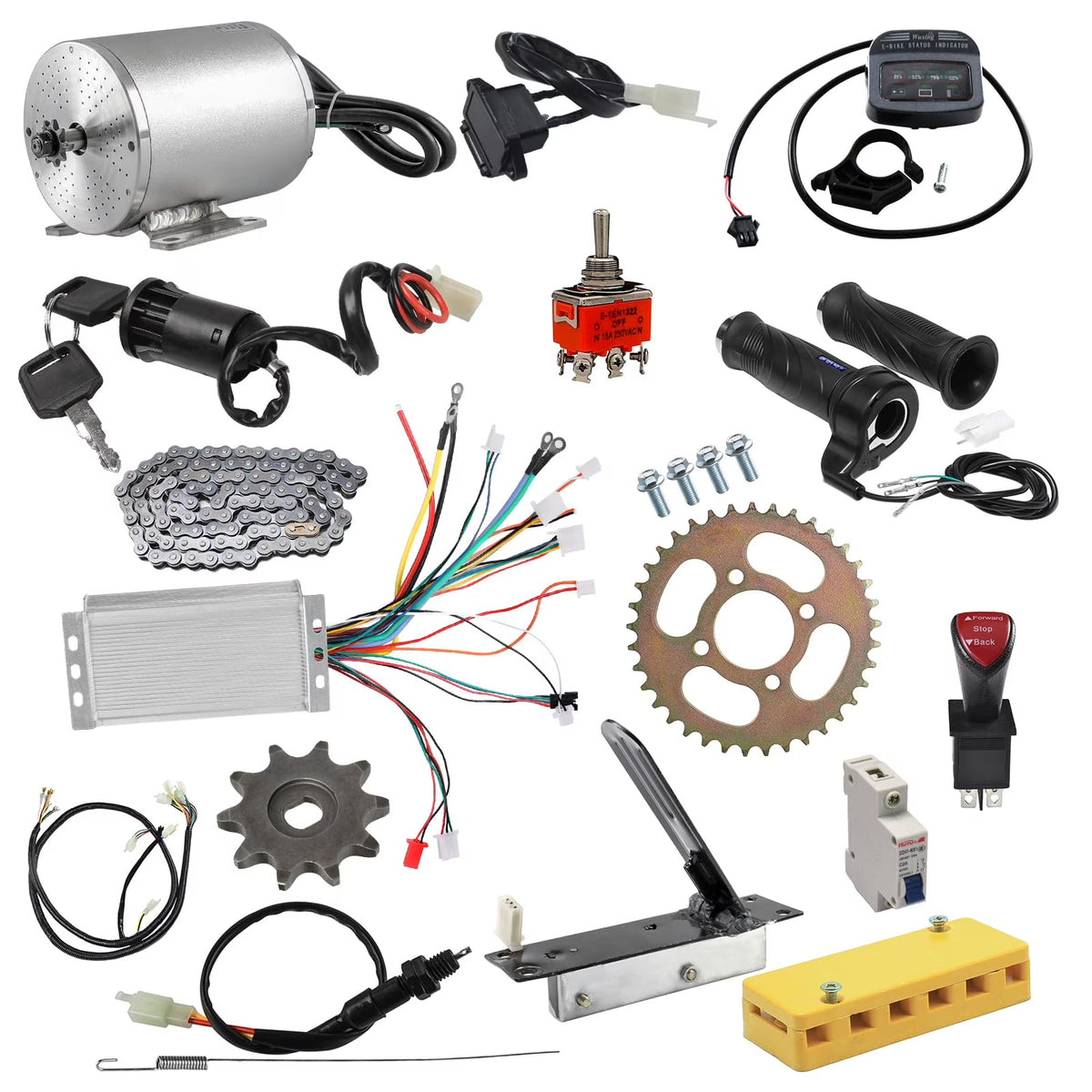

• • Package Includes:  1x Motor, 1x 420 10T motor sprocket, 1x 420 48T rear chain sprocket, 1x 420 100 links chain, 1x speed controller, 1x key switch, 1x charging port, 1x power indicator, 1x wiring harness, 1x terminal block, 1x foot pedal, 1x throttle grips, 1x forward reverse switch, 1x circuit breaker 1x 3 speed toggle switch
